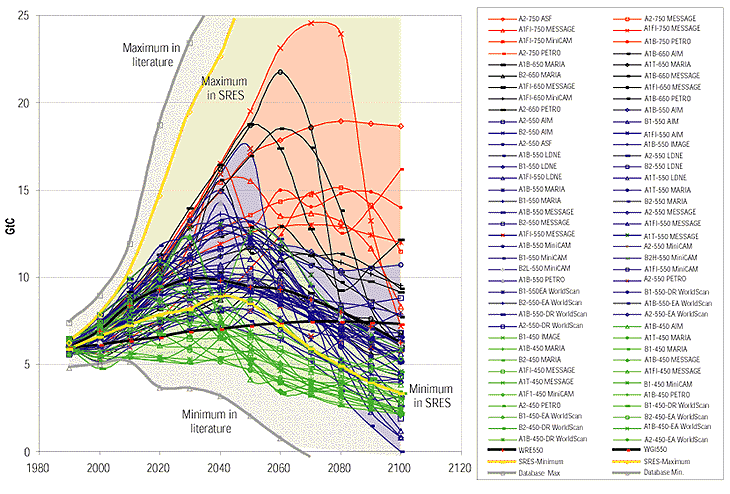

Figure 2-13: The 76 post-SRES
stabilization scenarios of world fossil fuel CO2 emissions. Different
stabilization levels are indicated by colour, with 750ppmv in red, 650ppmv in
black, 550ppmv in blue, and 450ppmv in green. For comparison, the minimum and
maximum of the ranges of scenarios from the literature (grey) and the SRES (yellow)
as well as the WRI and WRE 550ppmv stabilization scenarios (bold black) are also
shown.
