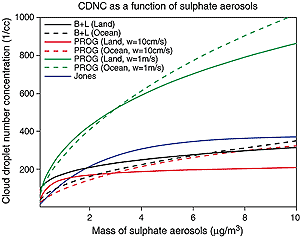

Figure 5.7: Droplet concentration as a function of sulphate concentra-tion for 3 different treatments: the empirical treatment of Jones et al. (1994b), the empirical treatment of Boucher and Lohmann (1995) (denoted B+L), and the mechanistic treatment of Chuang and Penner (1995) (denoted PROG).
The impact of CCN on the cloud droplet number concentration
(Nd) can be non-linear. One consequence of this is that the number
of natural CCN can strongly influence the way that CCN from anthropogenic emissions
affect the indirect radiative forcing. For example, Ghan et al. (1998) have
shown that the presence of relatively high concentrations of sea salt particles
can lead to increased Nd at lower sulphate concentrations and higher
updraught speeds. Conversely, the Nd are lowered by high salt concentrations
if sulphate concentrations are higher and updraught speeds are weaker (see also
O’Dowd et al. (1999)). However, it is not clear whether these processes
significantly affect the radiative forcing.
There are two general methods that have been used to relate changes in Nd
to changes in aerosol concentrations. The first and simplest approach uses an
empirical relationship that directly connects some aerosol quantity to Nd.
Two such empirical treatments have been derived. Jones et al. (1994b) used a
relationship between Nd and the number concentration of aerosol particles
(Na) above a certain size. This method is appropriate for the particles
that serve as nuclei for cloud droplets in stratiform cloud, but it can be ambiguous
for cumuliform cloud because of the activation of particles smaller than the
threshold of the Na (Isaac et al., 1990; Gillani et al., 1995). Boucher
and Lohmann (1995) used observations of Nd and of CCN versus particulate
or cloudwater sulphate to devise relationships between Nd and particulate
sulphate. This approach has the advantage that it circumvents the assumptions
required in deriving the aerosol number concentration Na from sulphate
mass. The use of sulphate as a surrogate for Nd implicitly accounts
for other particulate species in the aerosol, but only as long as relationships
are used that take into account the potential regional and seasonal differences
in the chemical mixture of the aerosol (e.g., Van Dingenen et al., 1995; Menon
and Saxena, 1998). Thus, the empirical relationships derived for regions with
high industrial sulphate loading may not be appropriate for biomass aerosols.
A new empirical approach relates Nd to the particle mass concentration
and mean volume diameter in the accumulation mode aerosol. It is based on mass
scavenging efficiencies of the accumulation-mode aerosol by stratiform clouds
(Glantz and Noone, 2000). When deriving empirical relationships, it is important
to be aware of the effects of the averaging scale (Gultepe and Isaac, 1998).
An advantage of the empirical methods is that they may account for the effects
on Nd that are associated with cloud dynamics in an average sense.
Variance in the cloud updraught velocities is one of the main reasons for the
large scatter in the observations from which these empirical relationships are
derived (Leaitch et al., 1996b; Feingold et al., 1999b).
The second method that has been used to relate changes inNdto changes in aerosol concentrations is based on a prognostic parametrization of the cloud droplet formation process (Ghan et al., 1993, 1995, 1997; Chuang and Penner, 1995; Abdul-Razzak et al., 1998; Abdul-Razzak and Ghan, 2000). This type of approach requires a representation of the CCN activity of the particles and a representation of the dynamic and thermodynamic properties of the cloud. At present, some of the aerosol properties necessary to describe the CCN spectrum must be assumed in order to apply this approach.
A comparison of the empirical and prognostic methods currently in use for determining
the Nd is shown in Figure 5.7. The empirical
relationships are taken from Jones et al. (1994b) and Boucher and Lohmann (1995)
and represent stratiform cloud. The curves labelled PROG follow the prognostic
parametrization used by Chuang and Penner (1995). There is some relative general
agreement between the empirical curves and the prognostic curves for low updraught
velocity. The prognostic curves for the higher updraught velocity, i.e. more
convective cloud, give much higher Nd than the empirical results
for stratiform cloud. The relatively close agreement of the 10 cms-1
updraught curve with the empirical scheme for the ocean is somewhat fortuitous.
Further work comparing both the empirical and prognostic schemes with observations
is needed, especially for the climatologically important marine stratocumulus,
to better understand the reasons for the agreements and differences in Figure
There are also atmospheric dynamic factors that affect the prediction of Nd. Trajectories of air parcels through strato-cumulus are highly variable (e.g., Feingold et al., 1998). For the prognostic methods with their explicit representation of the updraught velocity, there is a need to understand not just the probability distribution function (PDF) of updraughts in these clouds, but the PDF of those that actually nucleate droplets. No satisfactory method of parametrizing the local updraught has yet been devised. The prognostic methods also produce an adiabatic Nd, which leads to the problem of how to represent the mean Nd in the cloud in the presence of the entrainment of dry air. Entrainment can even result from changes in Nd (Boers and Mitchell, 1994). These issues are critical for the prognostic prediction of Nd and deserve continued study to determine how best to take their effects into account.
